Product name |

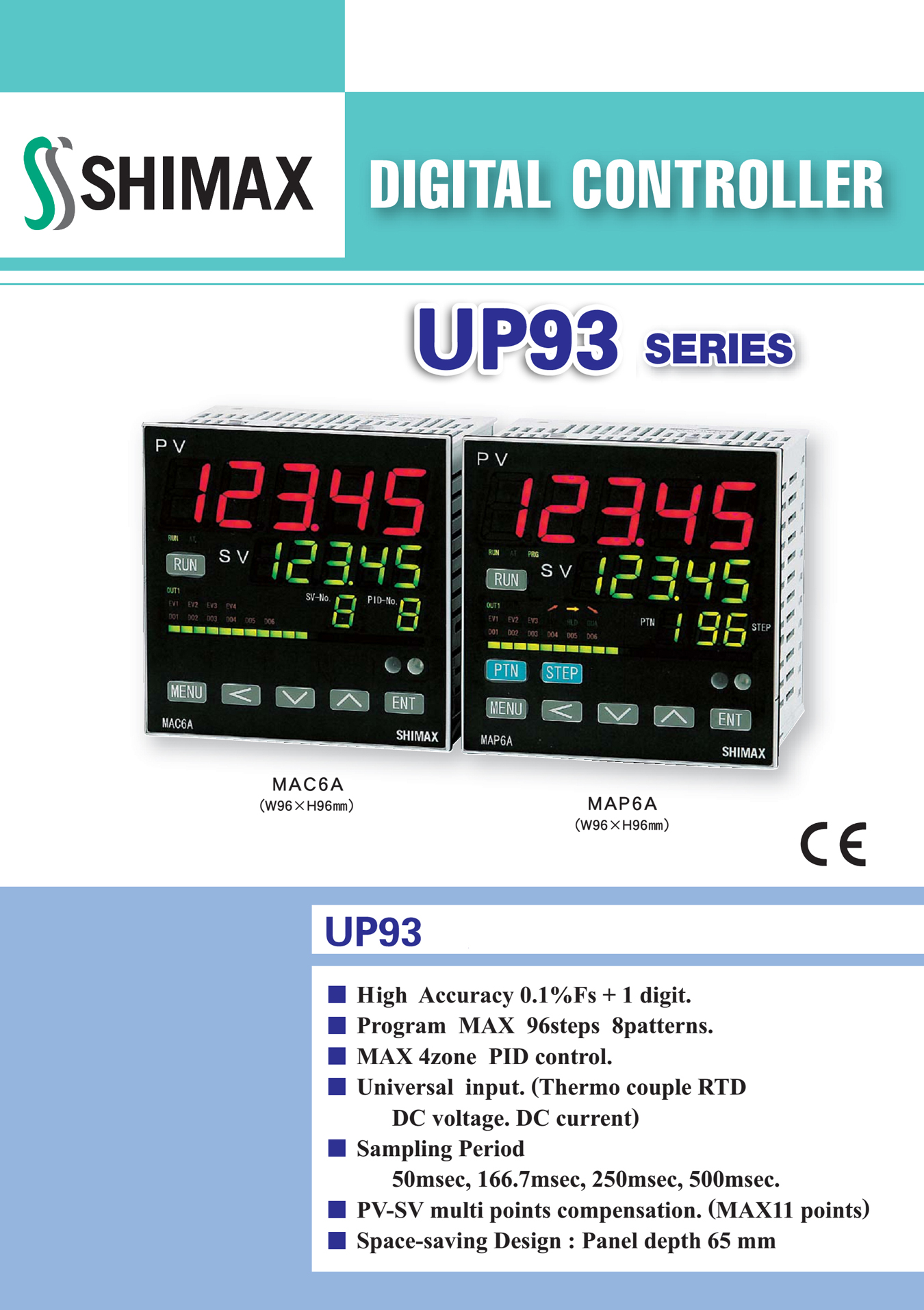

SHIMAX DIGITAL CONTROLLER |
| Product model | UP93 |
|
Power supply |
100-240V ±10% 50/60Hz |
|
Accuracy |
±(0.1%FS+1digit) |
|
Display range |
-10%-110% of measuring range |
|
Control system |
PID control with an auto tuning function Zone PID method or ON-OFF operation |
|
Control function |
96-step program curve（Can be grouped） /MAX 4zone PID control / Thermostatic control |
|
Sampling Period |
50 ms, 166.7 ms, 250 ms, 500 ms |
| Input |
Thermocouple、Resistance bulb、Voltage、Current |
|
Control Output |
Contact、Voltage pulse (SSR drive voltage)、Voltage、Current |
|
Use environmental condition |
Temperature :-10~55℃ Humidity:Below 90%RH (no dew condensation) |
|
Power consumption |
12VA |
|
Optional feature |
External operation output(3 points DO) |
|
4-20mA Analog Output(AO) RS485 communication |
